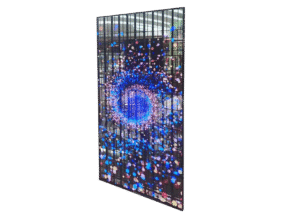

The T Poster Series is a modern version of LED posters, designed for mobility and ease of use. This freestanding transparent LED display offers high contrast, a sleek design, and tool-free quick setup. It is ideal for trade shows, events, showrooms, galleries, and all spaces where you want to highlight a message without visual barriers. Multiple units can be connected for larger formats.
LED modules, receiver cards and power supplies can be mentained in the front
Black SMD LED and high grey scale makes perfect performance
Installation brackets will be sent together with the cabinets
Die casting aluminum cabinets only 6.8kg and 4.6cm thickness.
The T Poster Series is a modern version of LED posters, designed for mobility and ease of use. This freestanding transparent LED display offers high contrast, a sleek design, and tool-free quick setup. It is ideal for trade shows, events, showrooms, galleries, and all spaces where you want to highlight a message without visual barriers. Multiple units can be connected for larger formats.
Contact us today to learn more about our indoor LED displays or to request a customized solution.
| Model | TGC1.9 | TGC2.8 | TGC3.9 | TGC5.2 |
|---|---|---|---|---|
| Pixel Pitch (mm) | H1.9-V3.9 | H2.8-V5.6 | H3.9-V7.8 | H5.2-V5.2 |
| Pixel Matrix (point/m²) | 129,024 | 61,952 | 32,768 | 36,982 |
| Pixel Configuration | SMD1515 | SMD1921 | SMD2121 | SMD1921 |
| Brightness (nits) | 2500 | 4500 | 1000/3500/5500 (optional) | 5500 |
| Scan | 1/14 | 1/16 | 1/16 | 1/6 |
| Module Dimension | 500x125mm / 1.64×0.41ft |
500x125mm / 1.64×0.41ft |
500x125mm / 1.64×0.41ft |
500x125mm / 1.64×0.41ft |
| Cabinet Dimension | 1000x500mm / Customized |
1000x500mm / 1000x1000mm/ Customized |
1000x500mm / 1000x1000mm/ Customized |
1000x500mm / Customized |
| Cabinet Resolution | 504×128 | 352×88 | 256×64 | 192×48 |
| Transparency | 30% | 50% | 70% | 80% |
| Cabinet Material | CNC Aluminum | CNC Aluminum | CNC Aluminum | CNC Aluminum |
| Cabinet Weight | 5kg | 5kg(1000x500mm)/ 7.5kg(1000x1000mm) |
5kg(1000x500mm)/ 7.5kg(1000x1000mm) |
5kg |
| Power Con. (W/m²) (Max/Avg) | 800W/360W | 800W/360W | 300-600-800W/ 90-180-360W |
800W/360W |
| Service Access | Front & Back | Front & Back | Front & Back | Front & Back |
| Refresh Rate (HZ) | 1920 | 1920 | 1920 | 1920 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Rate | IP43 | IP43 | IP43 | IP43 |
| Operation Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
| Input Voltage (AC) | 100V/240V | 100V/240V | 100V/240V | 100V/240V |
