The FLOOR series features heavy-duty interactive LED floor panels that can withstand loads up to 2 tons. They support animation effects and visitor interaction—ideal for shops, exhibitions, entertainment venues, and immersive experiences.
Strong, interactive LED flooring for branding, gamification, and immersive digital experiences.

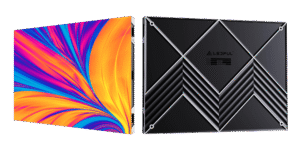

LED modules, receiver cards and power supplies can be mentained in the front
Black SMD LED and high grey scale makes perfect performance
Installation brackets will be sent together with the cabinets

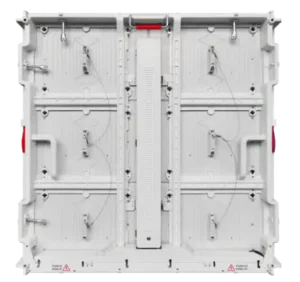

Die casting aluminum cabinets only 6.8kg and 4.6cm thickness.
The FLOOR series features heavy-duty interactive LED floor panels that can withstand loads up to 2 tons. They support animation effects and visitor interaction—ideal for shops, exhibitions, entertainment venues, and immersive experiences.
Strong, interactive LED flooring for branding, gamification, and immersive digital experiences.
Contact us today to learn more about our indoor LED displays or to request a customized solution.
| Model | FI2.9 | FI3.9 | FI4.8 | FI5.2 | FI6.2 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| Pixel Matrix (point/m²) | 112896 | 65536 | 43264 | 36864 | 16000 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Brightness (nits) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Scan | 1/14 | 1/16 | 1/16 | 1/6 | 1/10 |
| Module Dimension | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft |
| Cabinet Dimension | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft |
| Cabinet Resolution | 168×336 | 128×256 | 104×208 | 96×192 | 80×160 |
| Cabinet Weight | 22kg/48.5lb | 22kg/48.5lb | 22kg/48.5lb | 22kg/48.5lb | 22kg/48.5lb |
| Power Con. (W/m²) (Max/Avg) | 1200W/600W | 1200W/600W | 1200W/600W | 1200W/600W | 1200W/600W |
| Service Access | Front | Front | Front | Front | Front |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle (H/V) | 120°/120° | 120°/120° | 120°/120° | 120°/120° | 120°/120° |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operation Temperature | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C |
| Input Voltage (AC) | 220V(50-60Hz) | 220V(50-60Hz) | 220V(50-60Hz) | 220V(50-60Hz) | 220V(50-60Hz) |
| Model | FO3.9 | FO4.8 | FO5.2 | FO6.2 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 3.91 | 4.81 | 5.2 | 6.25 |
| Pixel Matrix (point/m²) | 65536 | 43264 | 36864 | 16000 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 4000 | 4000 |
| Scan | 1/16 | 1/16 | 1/6 | 1/10 |
| Module Dimension | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.82ft |
| Cabinet Dimension | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft | 500x1000mm / 1.64×3.28ft |
| Cabinet Resolution | 128×256 | 104×208 | 96×192 | 80×160 |
| Cabinet Weight | 22kg/48.5lb | 22kg/48.5lb | 22kg/48.5lb | 22kg/48.5lb |
| Power Con. (W/m²) (Max/Avg) | 1200W/600W | 1200W/600W | 1200W/600W | 1200W/600W |
| Service Access | Front | Front | Front | Front |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 |
| Viewing Angle (H/V) | 120°/120° | 120°/120° | 120°/120° | 120°/120° |
| IP Rate | IP67 | IP67 | IP67 | IP67 |
| Operation Temperature | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C |
| Input Voltage (AC) | 220V(50-60Hz) | 220V(50-60Hz) | 220V(50-60Hz) | 220V(50-60Hz) |
